These artifacts document the current public storefront and the intended system maps. The storefront screenshots were captured with Playwright against the public demo URL on 28 August 2026. They are visual evidence of the public surface only; they are not proof that private admin or payment flows are authorized for production.
Captured screenshots
Use absolute URLs for images because the live documentation builder serves Markdown pages from a generated route rather than the repository directory.
| Artifact | Viewport | Proof |
|---|---|---|
| Desktop PNG | 1366px full page | Public home structure, hero/banner, product merchandising, editorial sections, footer, and customer chat entry |
| Mobile PNG | 390×844 viewport | Mobile responsive header, spacing, content crop, and initial storefront behavior |
Desktop storefront
Mobile storefront
Architecture and behavior maps
| Map | Source | Rendered proof |
|---|---|---|

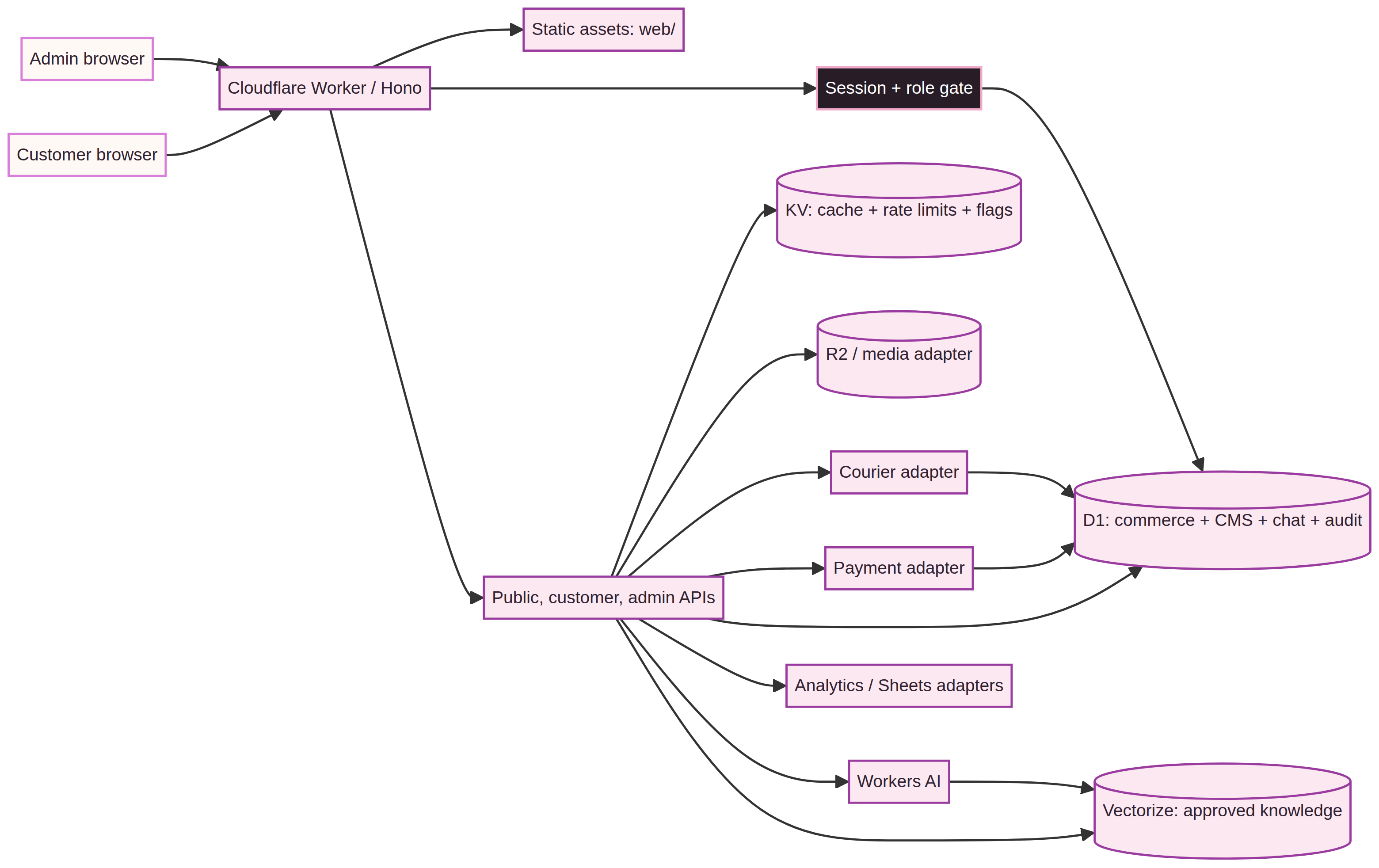

| System architecture | architecture.mmd | architecture PNG |

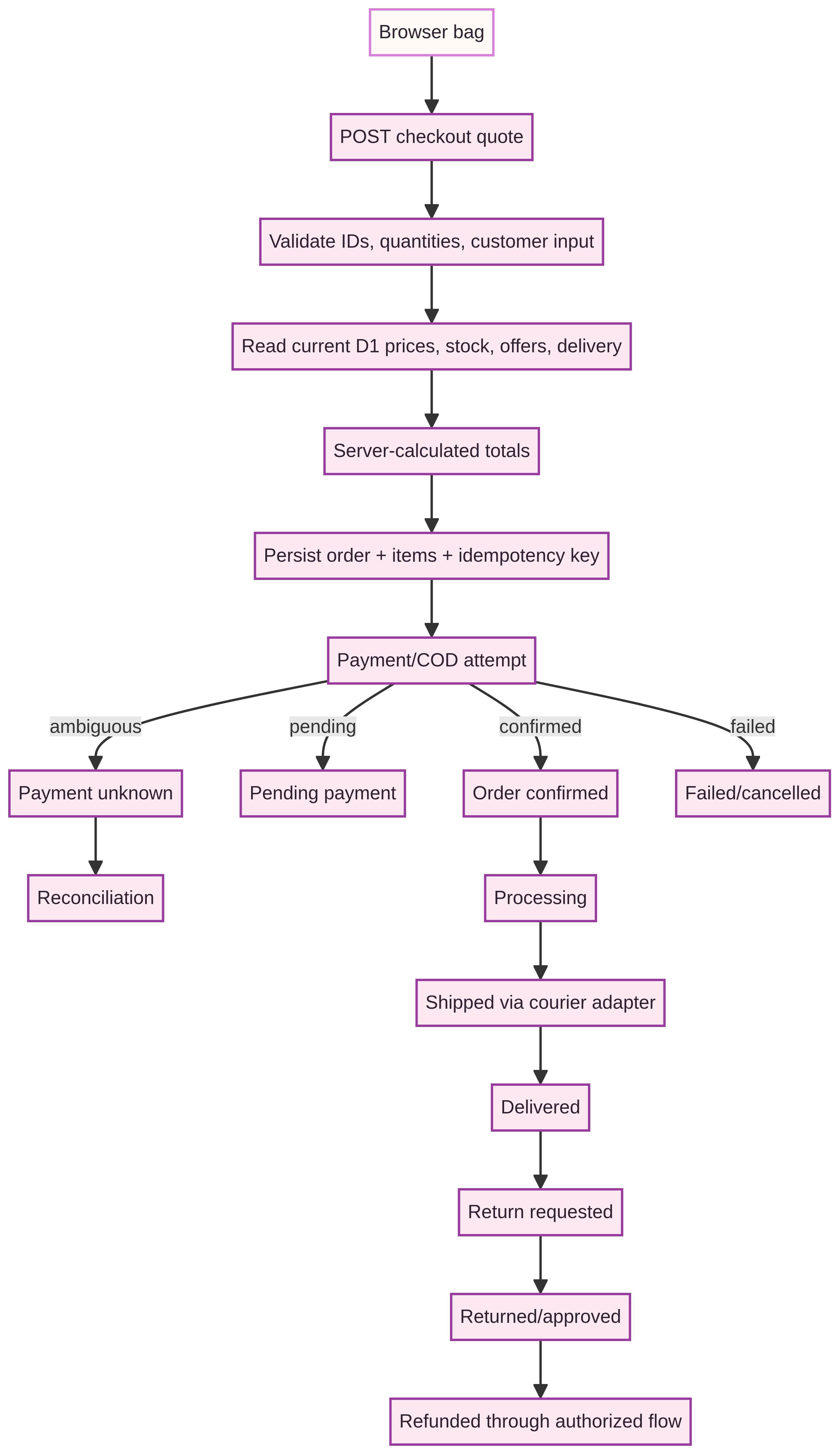

| Customer order pipeline | customer-order-pipeline.mmd | order pipeline PNG |

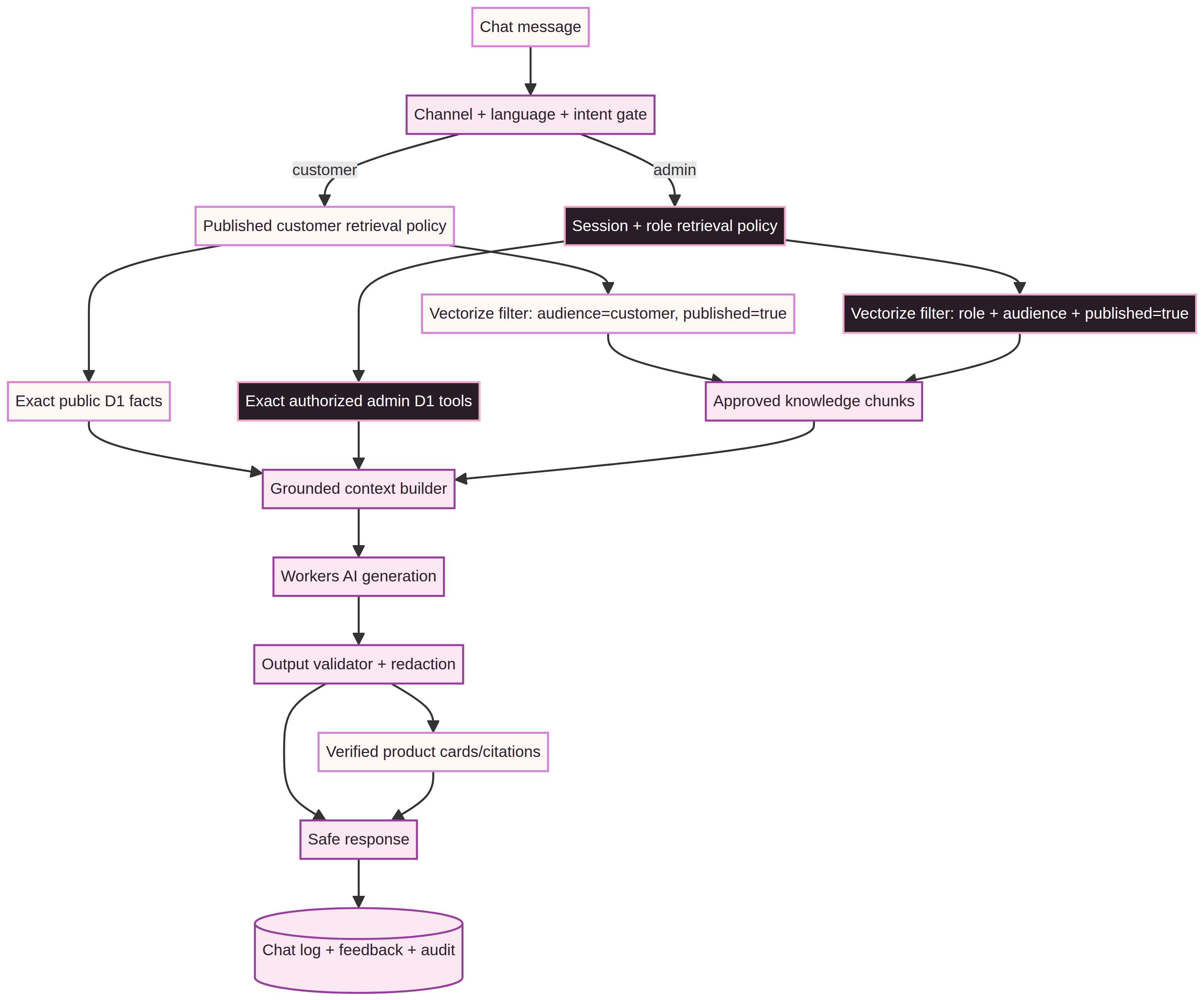

| AI chatbot retrieval | ai-chatbot-retrieval.mmd | AI retrieval PNG |
Architecture map
Customer order pipeline map
AI chatbot retrieval map
Requirement mapping
| Requirement | Evidence |
|---|---|
| Premium public storefront is reachable | Desktop and mobile screenshots |
| Responsive storefront exists | Mobile screenshot at 390×844 |
| Worker is the application boundary | Architecture map |
| D1 owns commerce state | Architecture and order pipeline maps |
| Checkout recalculates trusted totals | Customer order pipeline map and checkout tests |
| Customer and admin AI scopes are separated | AI chatbot retrieval map and security checklist |
| Product links are server-verified | AI chatbot chapter and customer chatbot tests |
| Admin mutations require audit/confirmation | Admin chapter, security checklist, and go-live checklist |
Evidence safety
The screenshots were captured without logging into an admin account or submitting a payment. Before committing any future screenshot, inspect the image and ensure that it contains no private dashboard data, customer data, auth state, cookies, secret-bearing URLs, payment references, or signed storage URLs. If a screenshot contains sensitive information, delete it locally, rotate affected credentials if necessary, and do not commit it.
Reproduce locally
BASE_URL=https://rinovabd.com npx playwright test tests/storefront-visual.spec.ts --project=chromium-desktop
BASE_URL=https://rinovabd.com npx playwright test tests/storefront-visual.spec.ts --project=chromium-mobile
Use a scrubbed staging environment for authenticated screenshots. Never use a production admin session as a reusable Playwright storage state.
